Smart Vento 9 5.1 Set
Smart Vento 9 5.1 Set
Smart Vento 9 5.1 Set
Smart Vento 9 5.1 Set
Smart Vento 9 5.1 Set
Zoom

Smart Vento 9 5.1 Set

5.1 Smart Speaker Set

€10,099.00*

Prices incl. VAT plus shipping costs

White high gloss

product-image
Pick your accessory
€649.00*
€33.00*
€25.00*
from €37.00*
from €46.00*
Find a distributor
Informations
  • 5.1 Smart surround system
  • 12 inch subwoofer
  • Titanium-graphite technology
  • Magnetic fabric cover

Item no.: 29844

Smart Vento 9 S2 Technical specifications

Smart Vento 9 S2
Smart Vento 3 S2
Smart Vento 5 S2
Smart SUB 12

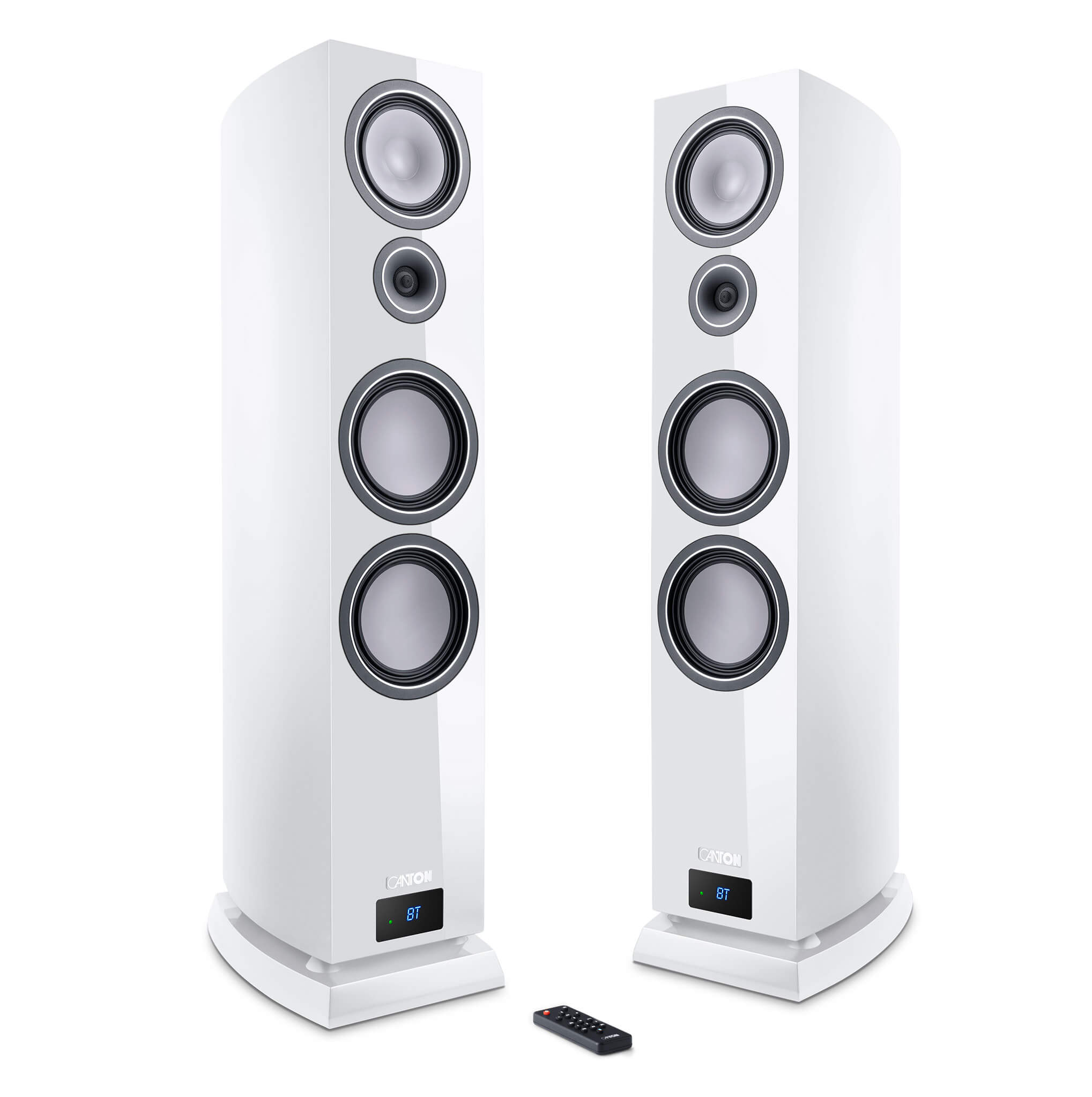

Smart Vento 9 S2

Item no.: 04314

Shipping:
Pallet

Carton contents:
1 x Smart Vento 9 S2 (master) 1 x Smart Vento 9 S2 (slave) Remote control Power cord Optical digital audio cable (1.5m) Coaxial digital audio cable (1.5m) Stereo analog audio cable (1.5m) Instruction manual

weight:
76 kg

Packing dimensions:
119 x 48,5 x 35,5 cm

Packing weight:
33,1 kg

Dimensions (WxHxD):
28,7 x 110 x 38 cm

Acoustic principle:
3-way bass reflex

Principle passive resonator:
Bass reflex

Radiation direction resonator:
Downfire

Tweeter quantity:
1

Tweeter size:
25 mm

Tweeter material:
Ceramic

Midrange driver quantity:
1

Midrange driver size:
174 mm

Midrange driver material:
Titanium-graphite (Wave surround)

Woofer quantity:
2

woofer size:
192 mm

woofer material:
Titanium-graphite (Wave surround)

Transmission range:
22...30.000 Hz

Crossover frequencies:
180 / 3.100 Hz

System performance:
600 watts

Standby power consumption ECO/NSB/AUT/MAN:
0,5 / 1,5 /.../ 0,5 watts

Extended data

Connections:
1 x Analogue input (chinch) 1 x Bluetooth® 3.0 Interface (apt-X® Decoding for transmission in CD quality) 1 x Digital Input (coaxial) 1 x Digital Input (optical) 1 x USB-Input with XMOS® technology 1 x XLR (Balanced)

Advanced connection information

Bluetooth® Standard:
3.0

Bluetooth® profile:
A2DP 1.2, AVRCP 1.3

Supported codecs:
apt-X/ SBC

S/PDIF input (coaxial):
1 x Cinch 24 Bit/96kHz

S/PDIF input (optical):
1 x TOSLink 24 Bit/96kHz

USB input:
USB 2.0 Typ-B PCM 24 Bit/96kHz / XMOS

Balanced (symmetrical):
1x Mono 2V effektiv XLR

S/PDIF OUT (coaxial):
1 x Cinch 24 Bit/96kHz

Subwoofer output:
1x Cinch Mono 2V effektive/No

Wireless network for connecting additional Smart Loudspeakers (Cantonet):
5 GHz / 2 Audio-Kanäle 24Bit/96kHz / 3-8 Audio-Kanäle 16Bit/48kHz

Dolby Atmos licensed:
no

Woofer Wave surround:
yes

Midrange Wave Bead:
yes

Double Cone:
yes

Transmission Front Plate:
yes

Bass Guide:
no

Unit socket included:
yes

Size supplement (WxDxH):
4x4x6 cm

Unit feet:
no

Height-adjustable unit feet:
no

Preparation spikes:
no

Preparation absorber:
no

Supported sound formats (S/PDIF):
Dolby Audio®, DTS Digital Surround®, PCM 24Bit 96kHz

Virtualizer:
DTS TruSurround

Virtual centre in 4.0 operation:
no

Maximum possible output configuration:
5.1

Preparation for wall mounting:
no

Wall mounting possible:
no

Bass adjustment:
no

Midrange adjustment:
no

Tweeter adjustment:
no

Extended special features

Coaxial loudspeaker:
no

TCC:
no

Suitable for ceiling mounting:
no

Moisture-protected:
no

Volume adjustment per speaker:
yes

Setting the listening level per speaker:
yes

Voice function - for better voice reproduction in stereo & surround:
yes

Equalizer - adaptation to spatial conditions:
yes

Integrated bass management:
yes

Adjustable phase adjustment of the subwoofer:
no

Dynamic Range Control - Setting the dynamic range:
yes

Sleep timer - setting the switch-off time:
yes

IR learning function - controllable with TV / system remote control:
yes

Input-direct selection - ideal for system remote controls:
yes

Input-direct selection - ideal for system remote controls:
yes

Automatic switch on and off:
no

Configuration of the inputs - Input renaming:
yes

LipSync function - for exact speech synchronisation:
yes

System volume - setting the maximum level:
yes

Restore factory settings - Reset function:
yes

Wireless Speaker Pairing - Pairing the wireless speakers:
yes

Bluetooth Select - Selects BT input automatically:
yes

Autoplay function - Automatic Bluetooth® playback:
yes

USB Soundcard use:
USB 2.0 Typ-B PCM 24 Bit/96kHz / XMOS

Fabric cover with magnetic holder:
yes

Sound settings can be saved to presets:
yes

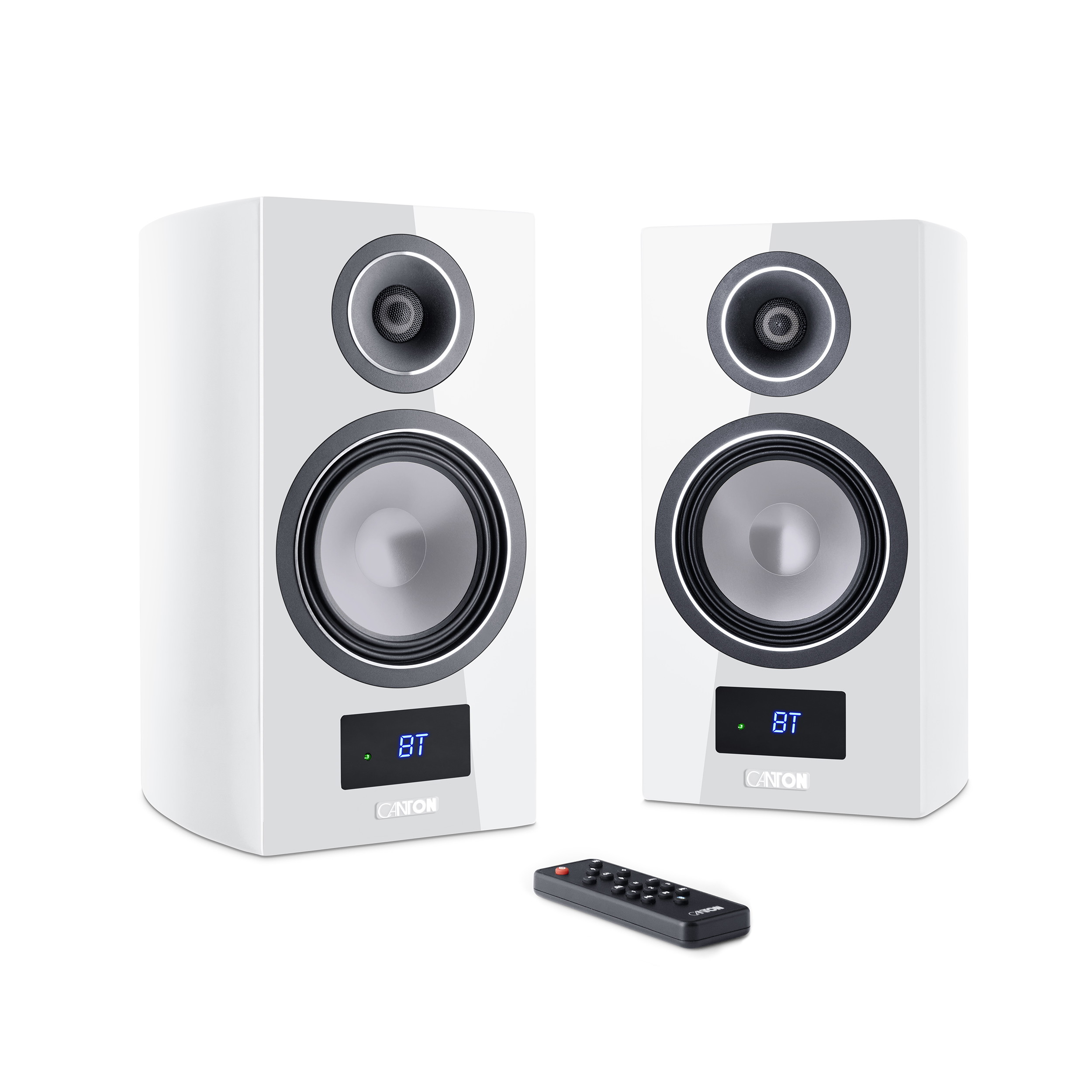

Smart Vento 3 S2

Item no.: 04316

Shipping:
Package

Carton contents:
1 x Smart Vento 3 S2 (master) 1 x Smart Vento 3 S2 (slave) Remote control Power cord Optical digital audio cable (1.5m) Coaxial digital audio cable (1.5m) Stereo analog audio cable (1.5m) Instruction manual

weight:
76 kg

Packing dimensions:
42,5 x 50,5 x 33 cm

Packing weight:
11,5 kg

Dimensions (WxHxD):
22 x 40 x 30,7 cm

Acoustic principle:
2-way bass reflex

Principle passive resonator:
Bass reflex

Radiation direction resonator:
Backfire

Tweeter quantity:
1

Tweeter size:
25 mm

Tweeter material:
Ceramic

Woofer/Midrange driver quantity:
1

Woofer/Midrange driver size:
174 mm

Woofer/Midrange driver material:
Titanium-graphite (Wave-surround)

Transmission range:
25...30.000 Hz

Crossover frequencies:
3.000 Hz

System performance:
350 Watt pro Lautsprecher watts

Standby power consumption ECO/NSB/AUT/MAN:
0,5 / 1,5 /.../ 0,5 watts

Extended data

Connections:
1 x Analogue input (chinch) 1 x Bluetooth® 3.0 Interface (apt-X® Decoding for transmission in CD quality) 1 x Digital Input (coaxial) 1 x Digital Input (optical) 1 x USB-Input with XMOS® technology 1 x XLR (Balanced)

Advanced connection information

Bluetooth® Standard:
3.0

Bluetooth® profile:
A2DP 1.2, AVRCP 1.3

Supported codecs:
apt-X/ SBC

S/PDIF input (coaxial):
1 x Cinch 24 Bit/96kHz

S/PDIF input (optical):
1 x TOSLink 24 Bit/96kHz

USB input:
USB 2.0 Typ-B PCM 24 Bit/96kHz / XMOS

Balanced (symmetrical):
1x Mono 2V effektiv XLR

S/PDIF OUT (coaxial):
1 x Cinch 24 Bit/96kHz

Subwoofer output:
1x Cinch Mono 2V effektive/No

Wireless network for connecting additional Smart Loudspeakers (Cantonet):
5 GHz / 2 Audio-Kanäle 24Bit/96kHz / 3-8 Audio-Kanäle 16Bit/48kHz

Dolby Atmos licensed:
no

Woofer Wave surround:
yes

Midrange Wave Bead:
yes

Double Cone:
no

Transmission Front Plate:
yes

Bass Guide:
no

Unit socket included:
no

Unit feet:
yes

Height-adjustable unit feet:
no

Preparation spikes:
no

Preparation absorber:
no

Supported sound formats (S/PDIF):
Dolby Audio®, DTS Digital Surround®, PCM 24Bit 96kHz

Virtualizer:
DTS TruSurround

Virtual centre in 4.0 operation:
no

Maximum possible output configuration:
5.1

Preparation for wall mounting:
no

Wall mounting possible:
no

Bass adjustment:
no

Midrange adjustment:
no

Tweeter adjustment:
no

Extended special features

Coaxial loudspeaker:
no

TCC:
no

Suitable for ceiling mounting:
no

Moisture-protected:
no

Volume adjustment per speaker:
yes

Setting the listening level per speaker:
yes

Voice function - for better voice reproduction in stereo & surround:
yes

Equalizer - adaptation to spatial conditions:
yes

Integrated bass management:
yes

Adjustable phase adjustment of the subwoofer:
no

Dynamic Range Control - Setting the dynamic range:
yes

Sleep timer - setting the switch-off time:
yes

IR learning function - controllable with TV / system remote control:
yes

Input-direct selection - ideal for system remote controls:
yes

Input-direct selection - ideal for system remote controls:
yes

Automatic switch on and off:
no

Configuration of the inputs - Input renaming:
yes

LipSync function - for exact speech synchronisation:
yes

System volume - setting the maximum level:
yes

Restore factory settings - Reset function:
yes

Wireless Speaker Pairing - Pairing the wireless speakers:
yes

Bluetooth Select - Selects BT input automatically:
yes

Autoplay function - Automatic Bluetooth® playback:
yes

USB Soundcard use:
USB 2.0 Typ-B PCM 24 Bit/96kHz / XMOS

Fabric cover with magnetic holder:
yes

Sound settings can be saved to presets:
no

Smart Vento 5 S2

Item no.: 04352

Shipping:
Package

weight:
76 kg

Packing dimensions:
71 x 32 x 47 cm

Packing weight:
17,3 kg

Dimensions (WxHxD):
61 x 20,5 x 35 cm

Acoustic principle:
3-way bass relfex

Principle passive resonator:
Bass reflex

Radiation direction resonator:
Backfire

Tweeter quantity:
1

Tweeter size:
25 mm

Tweeter material:
Ceramic

Midrange driver quantity:
1

Woofer quantity:
1

Transmission range:
25...30.000 Hz

Crossover frequencies:
3.000 Hz

Standby power consumption ECO/NSB/AUT/MAN:
0,35 / 1,2 /.../ 0,35 watts

Extended data

Connections:
1 x Analogue input (chinch) 1 x Digital Input (coaxial) 1 x Digital Input (optical) 1 x XLR (Balanced)

Advanced connection information

Dolby Atmos licensed:
no

Woofer Wave surround:
yes

Midrange Wave Bead:
yes

Double Cone:
no

Transmission Front Plate:
no

Bass Guide:
no

Unit socket included:
no

Unit feet:
yes

Height-adjustable unit feet:
no

Preparation spikes:
no

Preparation absorber:
no

Virtual centre in 4.0 operation:
no

Preparation for wall mounting:
no

Wall mounting possible:
no

Bass adjustment:
no

Midrange adjustment:
no

Tweeter adjustment:
no

Extended special features

Coaxial loudspeaker:
no

TCC:
no

Suitable for ceiling mounting:
no

Moisture-protected:
no

Volume adjustment per speaker:
yes

Setting the listening level per speaker:
yes

Voice function - for better voice reproduction in stereo & surround:
yes

Equalizer - adaptation to spatial conditions:
yes

Integrated bass management:
yes

Adjustable phase adjustment of the subwoofer:
no

Dynamic Range Control - Setting the dynamic range:
yes

Sleep timer - setting the switch-off time:
yes

IR learning function - controllable with TV / system remote control:
yes

Input-direct selection - ideal for system remote controls:
yes

Input-direct selection - ideal for system remote controls:
yes

Automatic switch on and off:
no

Configuration of the inputs - Input renaming:
yes

LipSync function - for exact speech synchronisation:
yes

System volume - setting the maximum level:
yes

Restore factory settings - Reset function:
yes

Wireless Speaker Pairing - Pairing the wireless speakers:
yes

Bluetooth Select - Selects BT input automatically:
no

Autoplay function - Automatic Bluetooth® playback:
no

Fabric cover with magnetic holder:
yes

Sound settings can be saved to presets:
no

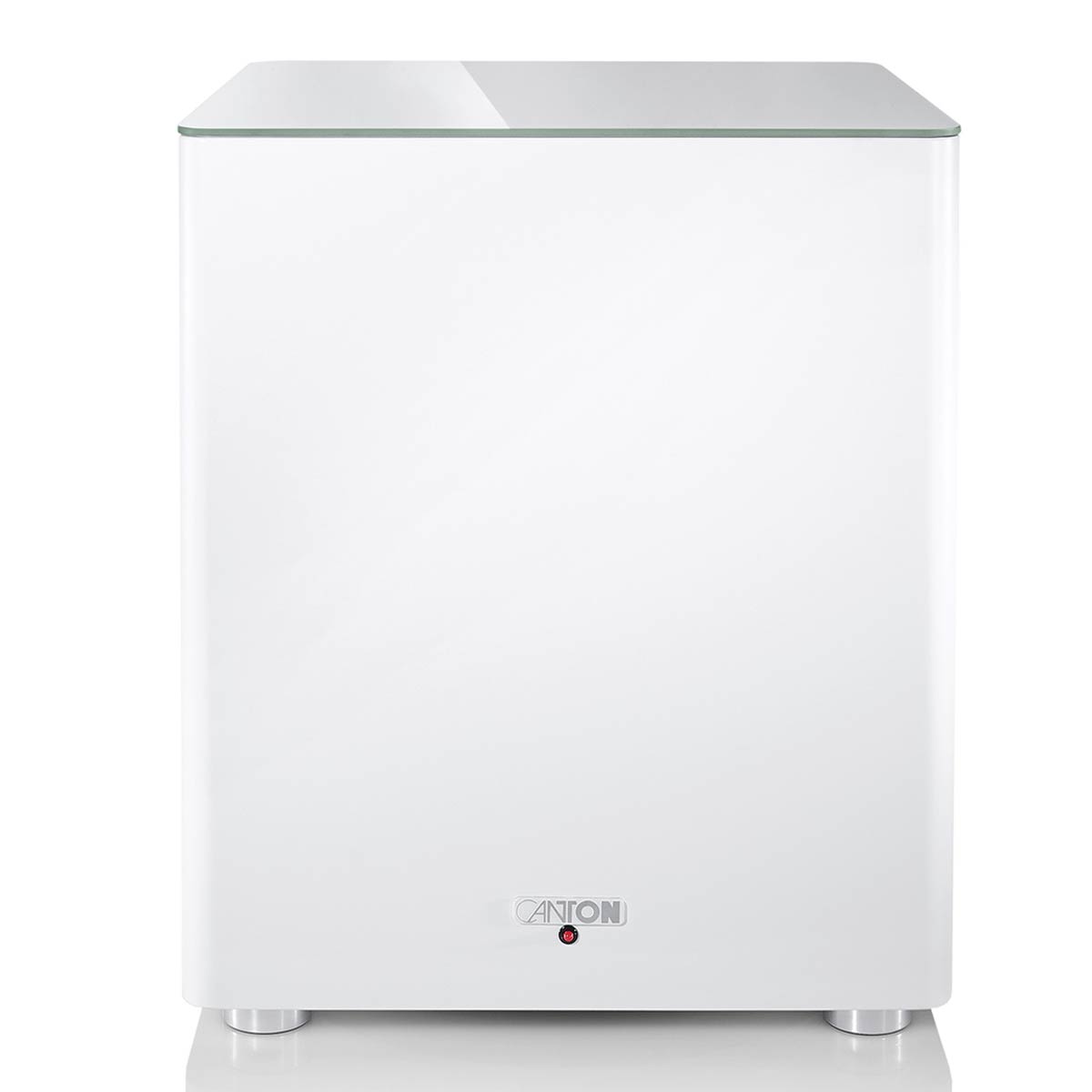

Smart SUB 12

Item no.: 04151

Shipping:
Package

Carton contents:
Smart SUB 12 Power cord Manual

remote control:
no

weight:
76 kg

Packing dimensions:
48,5 x 59 x 48,5 cm

Packing weight:
25,4 kg

Dimensions (WxHxD):
27 x 33 x 27 cm (10.6'' x 13'' x 10.6'') cm

Acoustic principle:
closed

Direction of radiation active driver:
Downfire

Woofer quantity:
1

woofer size:
308 mm

woofer material:
Cellulose/graphite (Downfire)

Music performance:
220 watts

Transmission range:
30...200 Hz Hz

Crossover frequencies:
50...200 Hz (adjustable) Hz

Standby power consumption ECO/NSB/AUT/MAN:
0,32 watts

Extended data

Advanced connection information

Woofer Wave surround:
yes

Double Cone:
no

Bass Guide:
no

Unit socket included:
no

Unit feet:
yes

Height-adjustable unit feet:
yes

Preparation spikes:
yes

Adjustable volume:
yes

Automatic switch on and off:
yes

Room adjustment:
yes

Extended special features

Preparation absorber:
yes

Loudspeaker terminals Banana plugs suitable:
yes

Preparation for wall mounting:
no

Cookie Settings
This website uses cookies to ensure the best experience possible. More information...
