Smart GLE 9 5.1 Set

5.1 Smart Speaker Set

€5,099.00*

Black Decor

product-image
Pick your accessory
€649.00*
from €149.00*
€33.00*
€25.00*
from €37.00*
from €46.00*
Find a distributor
Informations
  • 5.1 Smart surround system
  • 12 inch subwoofer
  • Titanium technology
  • Magnetic fabric cover

Item no.: 92986

Smart GLE 9 S2 Technical specifications

Smart GLE 9 S2
Smart GLE 3 S2
Smart GLE 5 S2
Smart SUB 12

Smart GLE 9 S2

Item no.: 04241

Shipping:
Pallet

Carton contents:
1 x Smart GLE 9 S2 (Master) 1 x Smart GLE 9 S2 (Slave) Remote control Power cord Optical digital audio cable (1.5m) Coaxial digital audio cable (1.5m) Stereo analog audio cable (1.5m) Instruction manual

weight:
49.9 kg

Packing dimensions:
117 x 46 x 35 cm

Packing weight:
24 kg

Dimensions (WxHxD):
B: 21 cm H: 106,3 cm mit Gerätefüßen T: 30 cm | 31 cm mit Abdeckung cm

Acoustic principle:
3-way bass reflex

Principle passive resonator:
Bass reflex

Radiation direction resonator:
Backfire

Tweeter quantity:
1

Tweeter size:
25 mm

Tweeter material:
Aluminium-manganese

Midrange driver quantity:
1

Midrange driver size:
174 mm

Midrange driver material:
Titanium (Wave surround)

Woofer quantity:
2

woofer size:
192 mm

woofer material:
Titanium (Wave surround)

Transmission range:
25...30.000 Hz

Crossover frequencies:
3.000 Hz

System performance:
350 watts

Standby power consumption ECO/NSB/AUT/MAN:
0,35 / 1,2 /.../ 0,35 watts

Connections:
1 x Analogue input (chinch) 1 x Bluetooth® 3.0 Interface (apt-X® Decoding for transmission in CD quality) 1 x Digital Input (coaxial) 1 x Digital Input (optical) 1 x USB-Input with XMOS® technology 1 x XLR (Balanced)

Bluetooth® Standard:
3.0

Bluetooth® profile:
A2DP 1.2, AVRCP 1.3

Supported codecs:
apt-X/ SBC

S/PDIF input (coaxial):
1 x Cinch 24 Bit/96kHz

S/PDIF input (optical):
1 x TOSLink 24 Bit/96kHz

USB input:
USB 2.0 Typ-B PCM 24 Bit/96kHz / XMOS

Balanced (symmetrical):
1x Mono 2V effektiv XLR

S/PDIF OUT (coaxial):
1 x Cinch 24 Bit/96kHz

Subwoofer output:
1x Cinch Mono 2V effektive/No

Wireless network for connecting additional Smart Loudspeakers (Cantonet):
5 GHz / 2 Audio-Kanäle 24Bit/96kHz / 3-8 Audio-Kanäle 16Bit/48kHz

Woofer Wave surround:
yes

Midrange Wave Bead:
yes

Double Cone:
yes

Transmission Front Plate:
yes

Unit feet:
yes

Supported sound formats (S/PDIF):
Dolby Audio®, DTS Digital Surround®, PCM 24Bit 96kHz

Virtualizer:
DTS TruSurround

Maximum possible output configuration:
5.1

Volume adjustment per speaker:
yes

Setting the listening level per speaker:
yes

Voice function - for better voice reproduction in stereo & surround:
yes

Equalizer - adaptation to spatial conditions:
yes

Integrated bass management:
yes

Dynamic Range Control - Setting the dynamic range:
yes

Sleep timer - setting the switch-off time:
yes

IR learning function - controllable with TV / system remote control:
yes

Input-direct selection - ideal for system remote controls:
yes

Input-direct selection - ideal for system remote controls:
yes

Configuration of the inputs - Input renaming:
yes

LipSync function - for exact speech synchronisation:
yes

System volume - setting the maximum level:
yes

Restore factory settings - Reset function:
yes

Wireless Speaker Pairing - Pairing the wireless speakers:
yes

Bluetooth Select - Selects BT input automatically:
yes

Autoplay function - Automatic Bluetooth® playback:
yes

USB Soundcard use:
USB 2.0 Typ-B PCM 24 Bit/96kHz / XMOS

Fabric cover with magnetic holder:
yes

Sound settings can be saved to presets:
yes

Smart GLE 3 S2

Item no.: 04243

Shipping:
Package

Carton contents:
1 x Smart GLE 3 S2 (Master) 1 x Smart GLE 3 S2 (Slave) Remote control Power cable Optical digital audio cable (1.5m) Coaxial digital audio cable (1.5m) Analog stereo audio cable (1.5m) Instruction manual

weight:
49.9 kg

Packing dimensions:
58 x 38 x 49 cm

Packing weight:
18 kg

Dimensions (WxHxD):
19 x 36 x 27,7 cm

Acoustic principle:
2-way bass reflex

Principle passive resonator:
Bass reflex

Radiation direction resonator:
Backfire

Tweeter quantity:
1

Tweeter size:
25 mm

Tweeter material:
Aluminium-manganese (Wave surround)

Woofer/Midrange driver quantity:
1

Woofer/Midrange driver size:
174 mm

Woofer/Midrange driver material:
Titanium (Wave surround)

Transmission range:
28...30.000 Hz Hz

Crossover frequencies:
3.000 Hz Hz

System performance:
350 watts

Standby power consumption ECO/NSB/AUT/MAN:
0,35 / 1,2 /.../ 0,35 watts

Connections:
1 x Analogue input (chinch) 1 x Bluetooth® 3.0 Interface (apt-X® Decoding for transmission in CD quality) 1 x Digital Input (coaxial) 1 x Digital Input (optical) 1 x USB-Input with XMOS® technology 1 x XLR (Balanced)

Bluetooth® Standard:
3.0

Bluetooth® profile:
A2DP 1.2, AVRCP 1.3

Supported codecs:
apt-X/ SBC

S/PDIF input (coaxial):
1 x Cinch 24 Bit/96kHz

S/PDIF input (optical):
1 x TOSLink 24 Bit/96kHz

USB input:
USB 2.0 Typ-B PCM 24 Bit/96kHz / XMOS

Balanced (symmetrical):
1x Mono 2V effektiv XLR

S/PDIF OUT (coaxial):
1 x Cinch 24 Bit/96kHz

Subwoofer output:
1x Cinch Mono 2V effektive/No

Wireless network for connecting additional Smart Loudspeakers (Cantonet):
5 GHz / 2 Audio-Kanäle 24Bit/96kHz / 3-8 Audio-Kanäle 16Bit/48kHz

Woofer Wave surround:
yes

Midrange Wave Bead:
yes

Transmission Front Plate:
yes

Unit feet:
yes

Supported sound formats (S/PDIF):
Dolby Audio®, DTS Digital Surround®, PCM 24Bit 96kHz

Virtualizer:
DTS TruSurround

Maximum possible output configuration:
5.1

Volume adjustment per speaker:
yes

Setting the listening level per speaker:
yes

Voice function - for better voice reproduction in stereo & surround:
yes

Equalizer - adaptation to spatial conditions:
yes

Integrated bass management:
yes

Dynamic Range Control - Setting the dynamic range:
yes

Sleep timer - setting the switch-off time:
yes

IR learning function - controllable with TV / system remote control:
yes

Input-direct selection - ideal for system remote controls:
yes

Input-direct selection - ideal for system remote controls:
yes

Configuration of the inputs - Input renaming:
yes

LipSync function - for exact speech synchronisation:
yes

System volume - setting the maximum level:
yes

Restore factory settings - Reset function:
yes

Wireless Speaker Pairing - Pairing the wireless speakers:
yes

Bluetooth Select - Selects BT input automatically:
yes

Autoplay function - Automatic Bluetooth® playback:
yes

USB Soundcard use:
USB 2.0 Typ-B PCM 24 Bit/96kHz / XMOS

Fabric cover with magnetic holder:
yes

Sound settings can be saved to presets:
yes

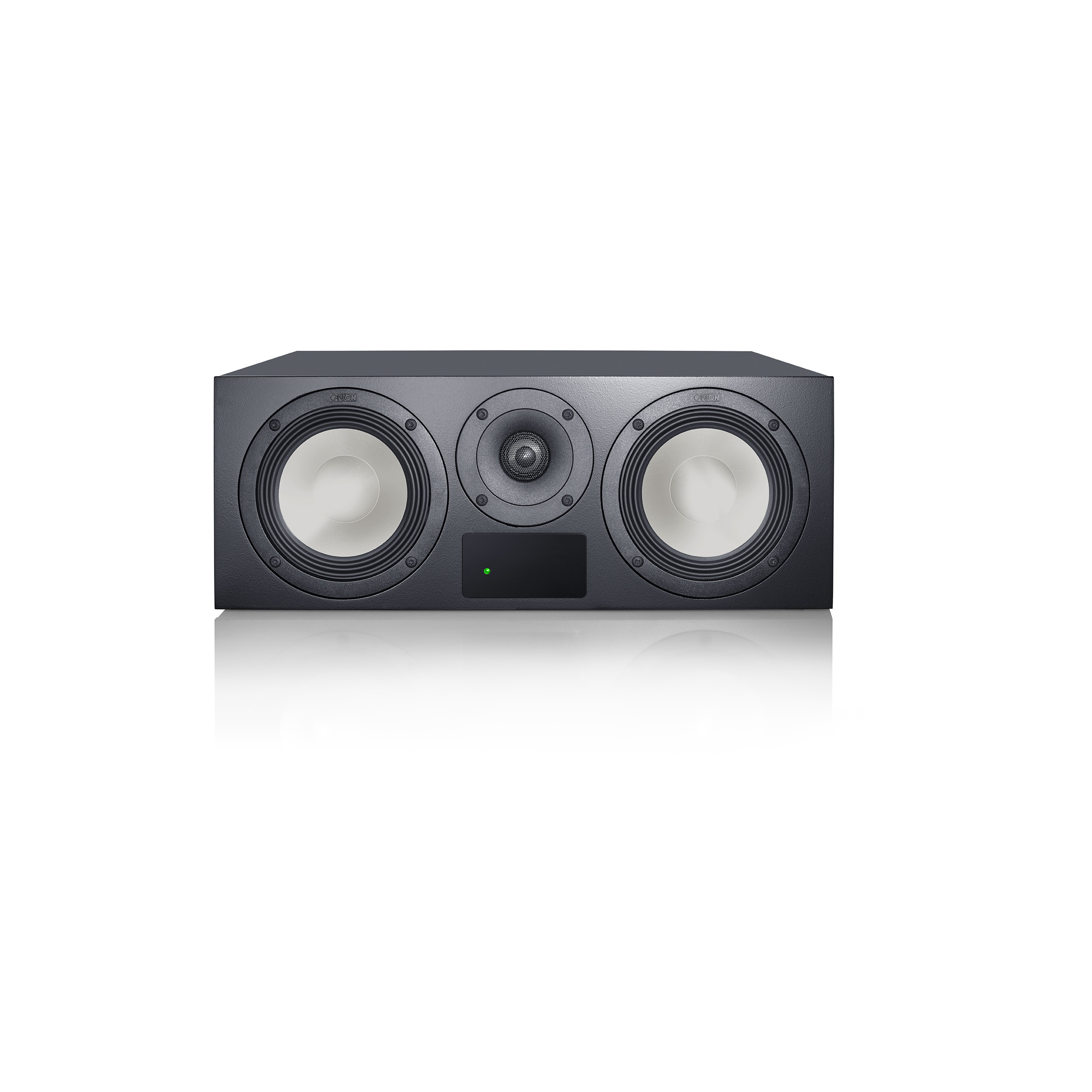

Smart GLE 5 S2

Item no.: 04347

Shipping:
Package

weight:
49.9 kg

Packing dimensions:
52 x 27,5 x 41 cm

Packing weight:
11,5 kg

Dimensions (WxHxD):
45.5 x 17.5 x 31 (17.9" x 6.9" x 12.2") cm

Acoustic principle:
2.5-way closed

Tweeter quantity:
1

Tweeter size:
25 mm

Tweeter material:
Aluminium-manganese (Wave surround)

Woofer/Midrange driver quantity:
2

Woofer/Midrange driver size:
154 mm

Woofer/Midrange driver material:
Titanium

Transmission range:
28...30.000 Hz

Crossover frequencies:
3.000 Hz

System performance:
350 watts per speaker watts

Standby power consumption ECO/NSB/AUT/MAN:
0,35 / 1,2 /.../ 0,35 watts

Connections:
1 x Analogue input (chinch) 1 x Digital Input (coaxial) 1 x Digital Input (optical) 1 x XLR (Balanced)

Woofer Wave surround:
yes

Transmission Front Plate:
yes

Unit feet:
yes

Volume adjustment per speaker:
yes

Setting the listening level per speaker:
yes

Voice function - for better voice reproduction in stereo & surround:
yes

Equalizer - adaptation to spatial conditions:
yes

Integrated bass management:
yes

Dynamic Range Control - Setting the dynamic range:
yes

Sleep timer - setting the switch-off time:
yes

IR learning function - controllable with TV / system remote control:
yes

Input-direct selection - ideal for system remote controls:
yes

Input-direct selection - ideal for system remote controls:
yes

Configuration of the inputs - Input renaming:
yes

LipSync function - for exact speech synchronisation:
yes

System volume - setting the maximum level:
yes

Restore factory settings - Reset function:
yes

Wireless Speaker Pairing - Pairing the wireless speakers:
yes

Fabric cover with magnetic holder:
yes

Smart SUB 12

Item no.: 04150

Shipping:
Package

Carton contents:
Smart SUB 12 Power cord Manual

weight:
49.9 kg

Packing dimensions:
48,5 x 59 x 48,5 cm

Packing weight:
25,4 kg

Dimensions (WxHxD):
27 x 33 x 27 cm (10.6'' x 13'' x 10.6'') cm

Acoustic principle:
closed

Direction of radiation active driver:
Downfire

Woofer quantity:
1

woofer size:
308 mm

woofer material:
Cellulose/graphite (Downfire)

Music performance:
220 watts

Transmission range:
30...200 Hz Hz

Crossover frequencies:
50...200 Hz (adjustable) Hz

Standby power consumption ECO/NSB/AUT/MAN:
0,32 watts

Woofer Wave surround:
yes

Unit feet:
yes

Height-adjustable unit feet:
yes

Preparation spikes:
yes

Adjustable volume:
yes

Automatic switch on and off:
yes

Room adjustment:
yes

Preparation absorber:
yes

Loudspeaker terminals Banana plugs suitable:
yes
