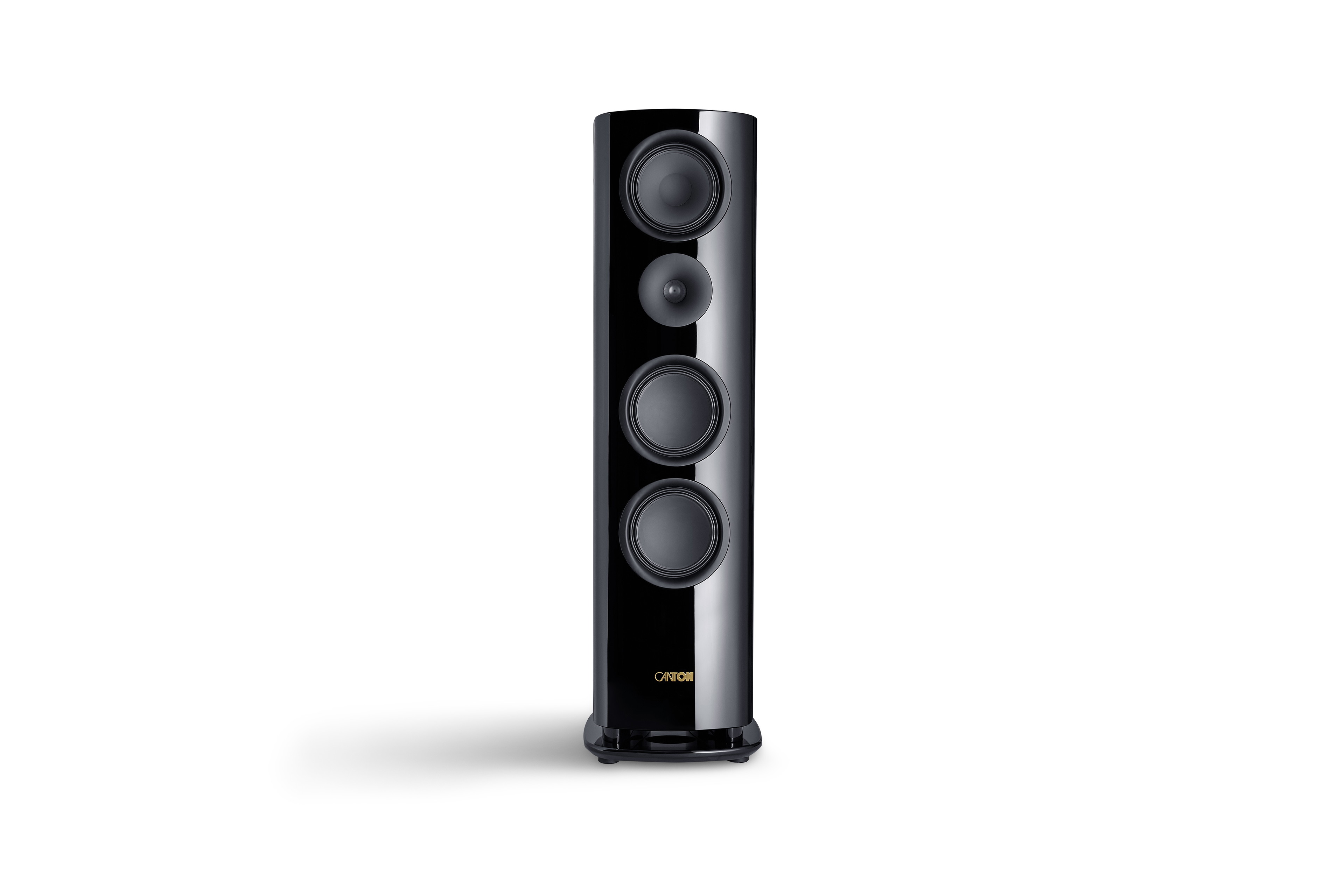

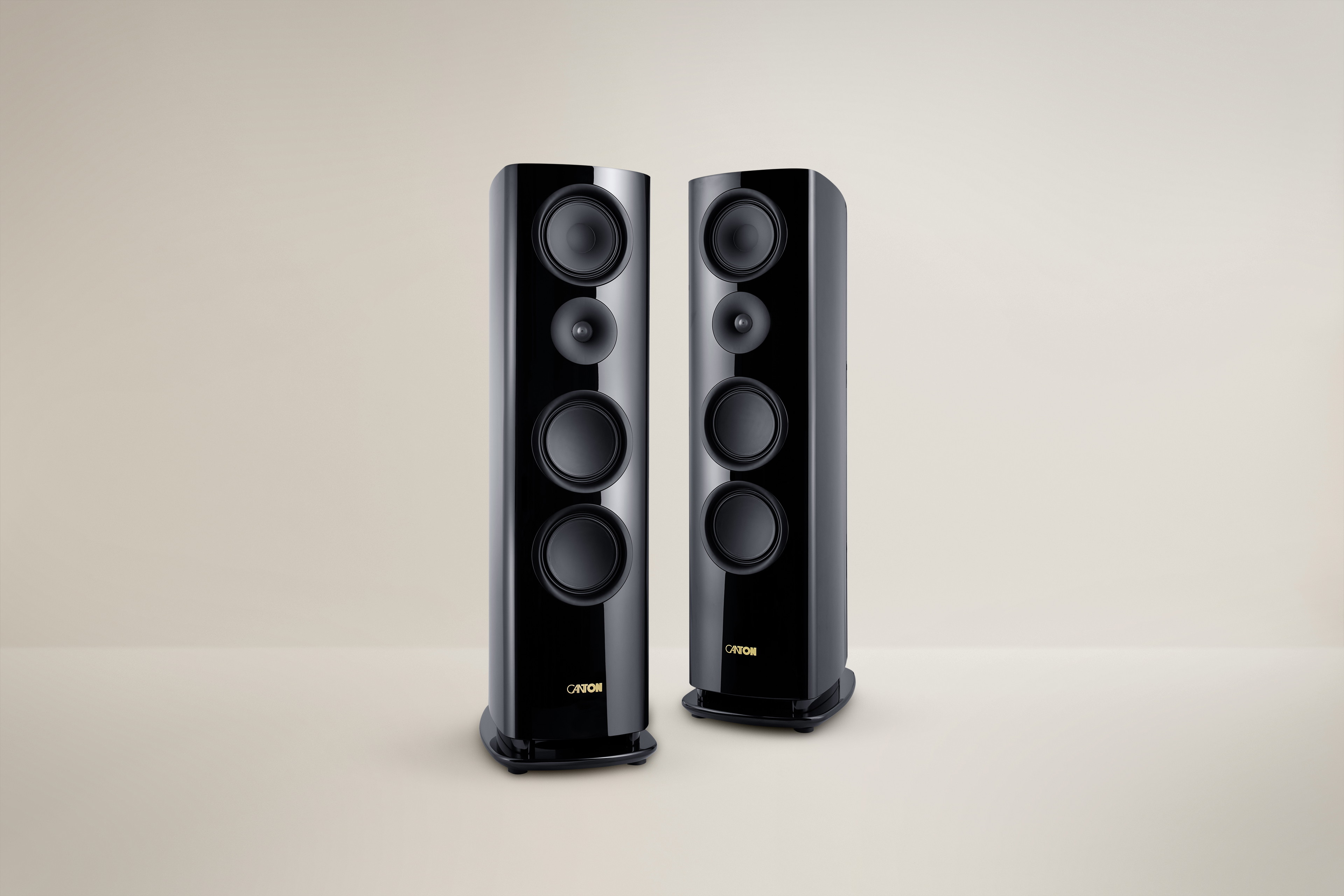

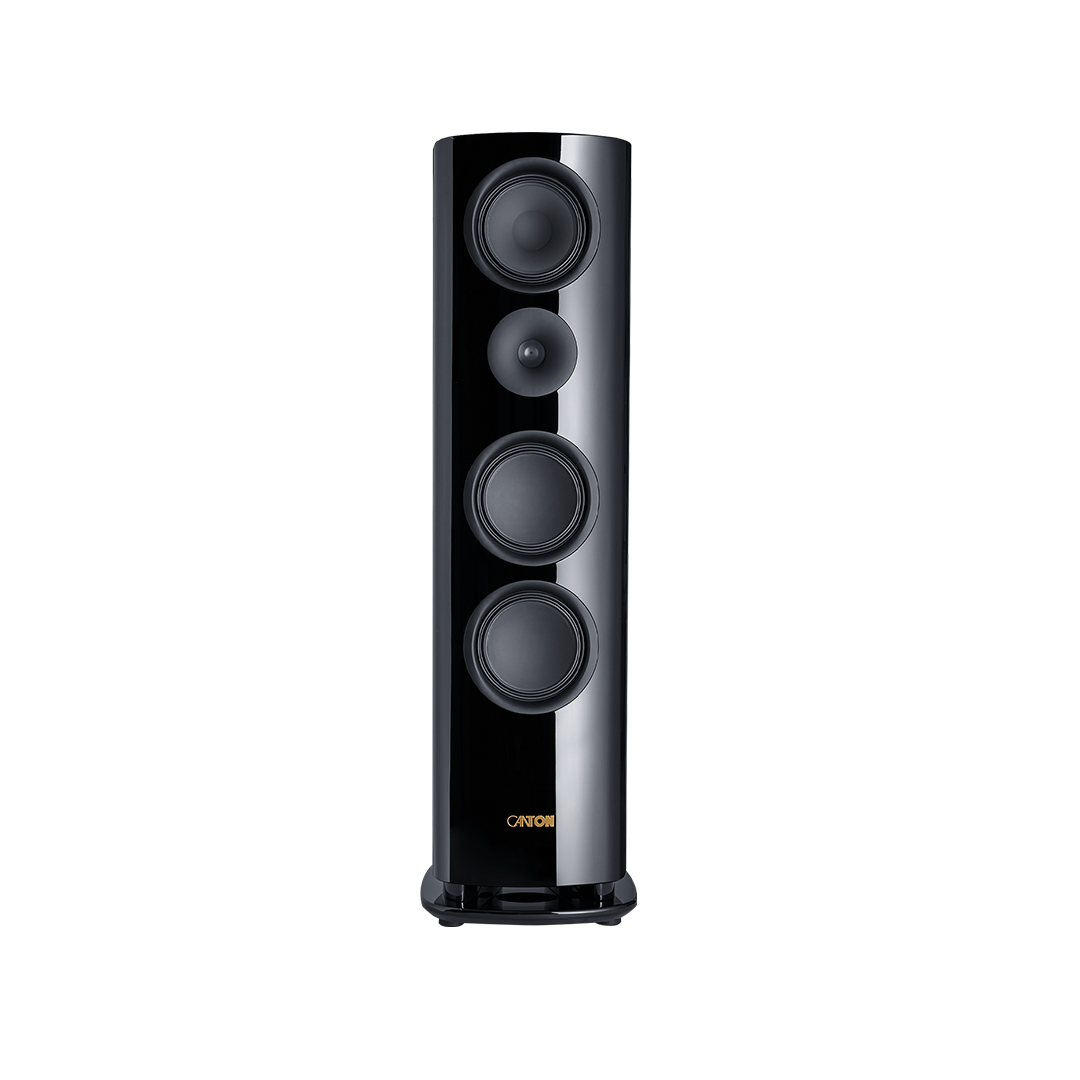

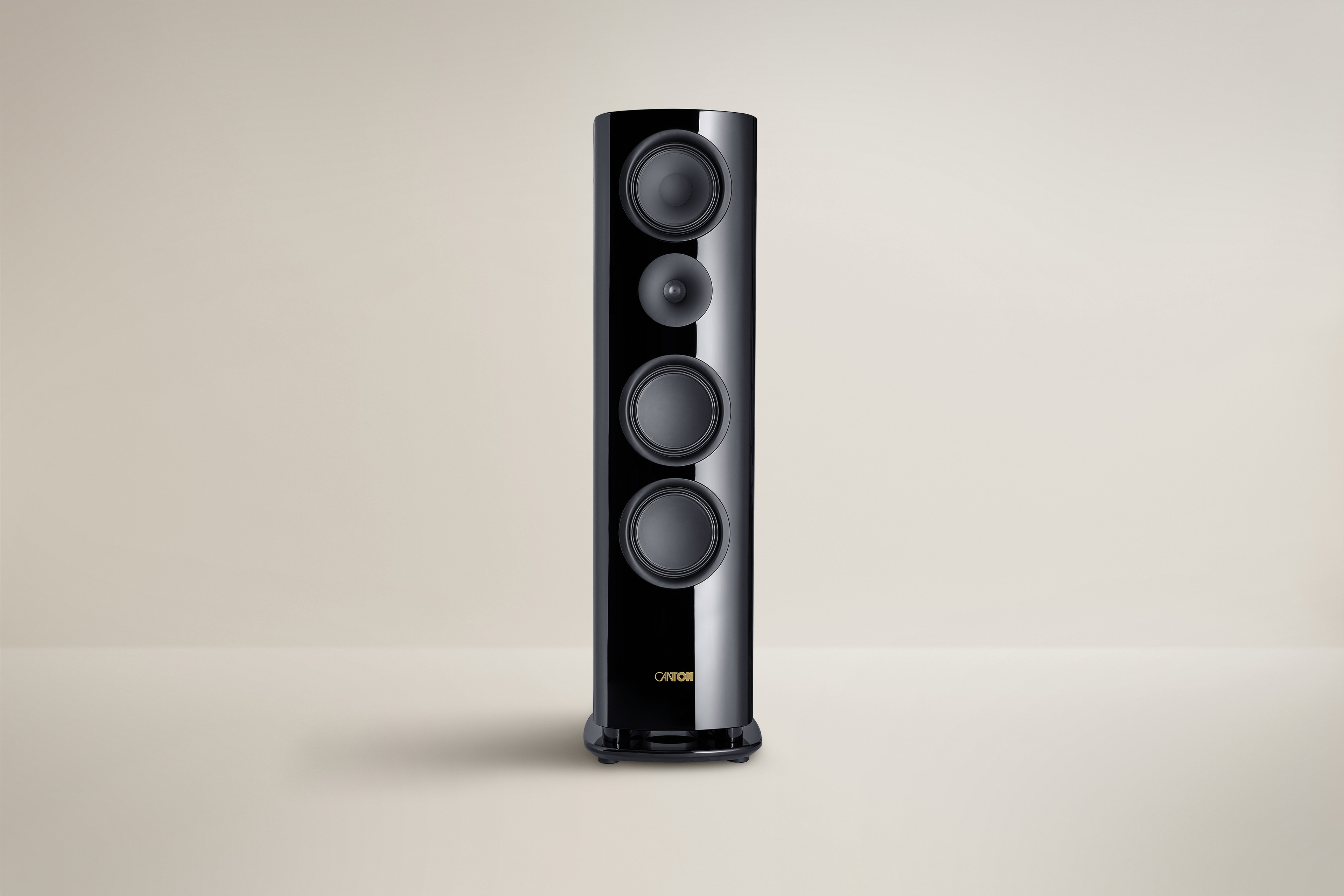

Reference 5 GS Edition
High End Floorstanding speaker
- 3-way bass reflex system
- Black Ceramic tungsten technology
- 370 watts
- 30 x 102 x 46 cm (W x H x D)
Item no.: 04620
30 x 102 x 46 cm (W x H x D) including base construction
370 watt music load capacity
36 kilogram
Iconic sound for the highest quality demands
Chassis with new BCT diaphragm (Black Ceramic Tungsten)
Sweeping cabinet shape for unlimited music pleasure
WBT terminals for optimal signal connection
Acoustically neutral cover with magnetic attachment
10 years warranty on Reference passive loudspeakers
FULL OF SHAPES
The Reference 5 GS Edition is a particularly finely tuned special edition of our successful Reference 5 floorstanding loudspeaker - developed with great attention to detail and the aim of getting even more out of an already excellent loudspeaker. Under the direction of company founder Günther Seitz, it has been refined with selected high-end components: the new DLC tweeter system from the Reference Alpha series, a high-quality crossover with selected Mundorf components and the proven Room Compensation technology for individual sound tuning. Visually, it makes a stylish statement with the new “Sand” color variant - warm, modern and luxurious.

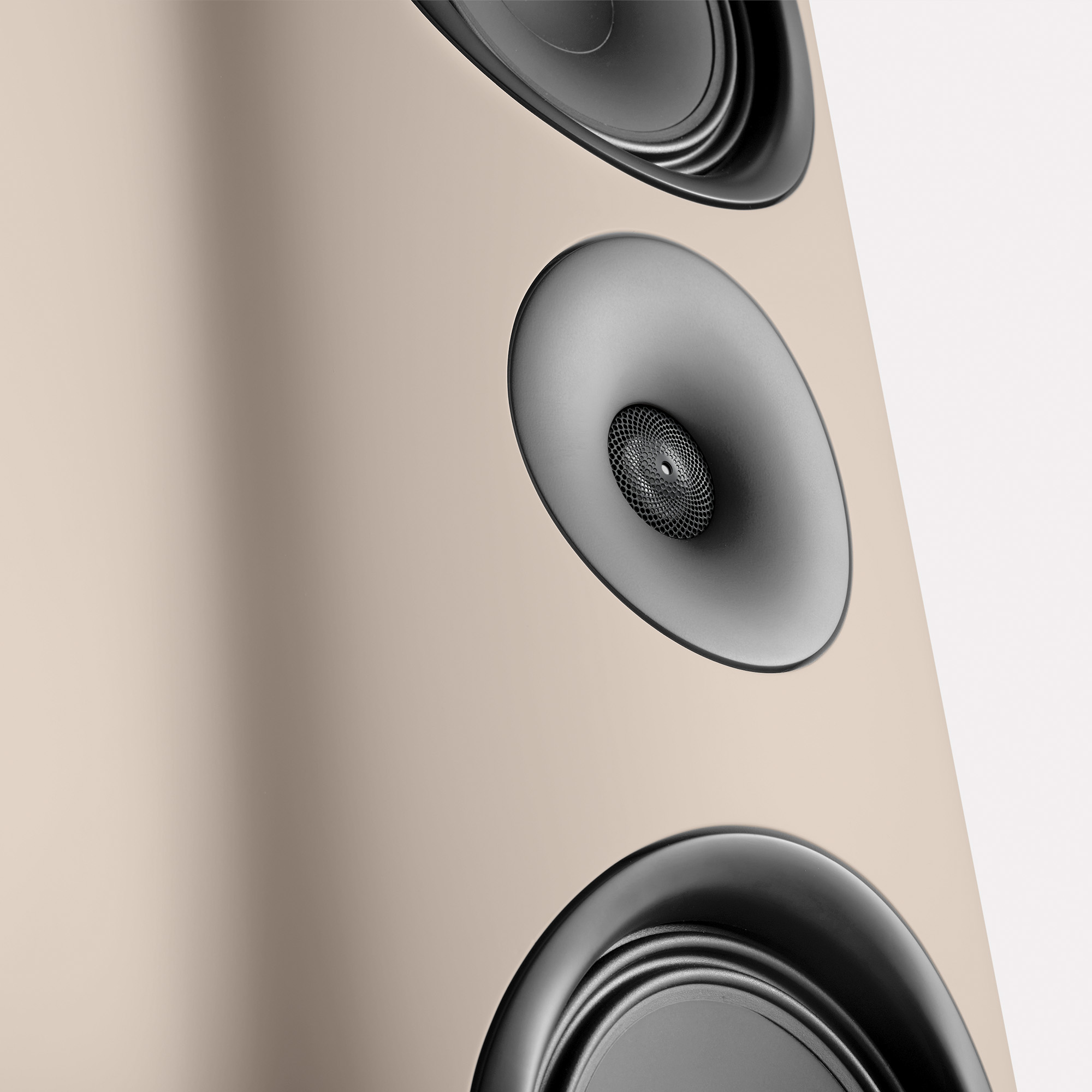

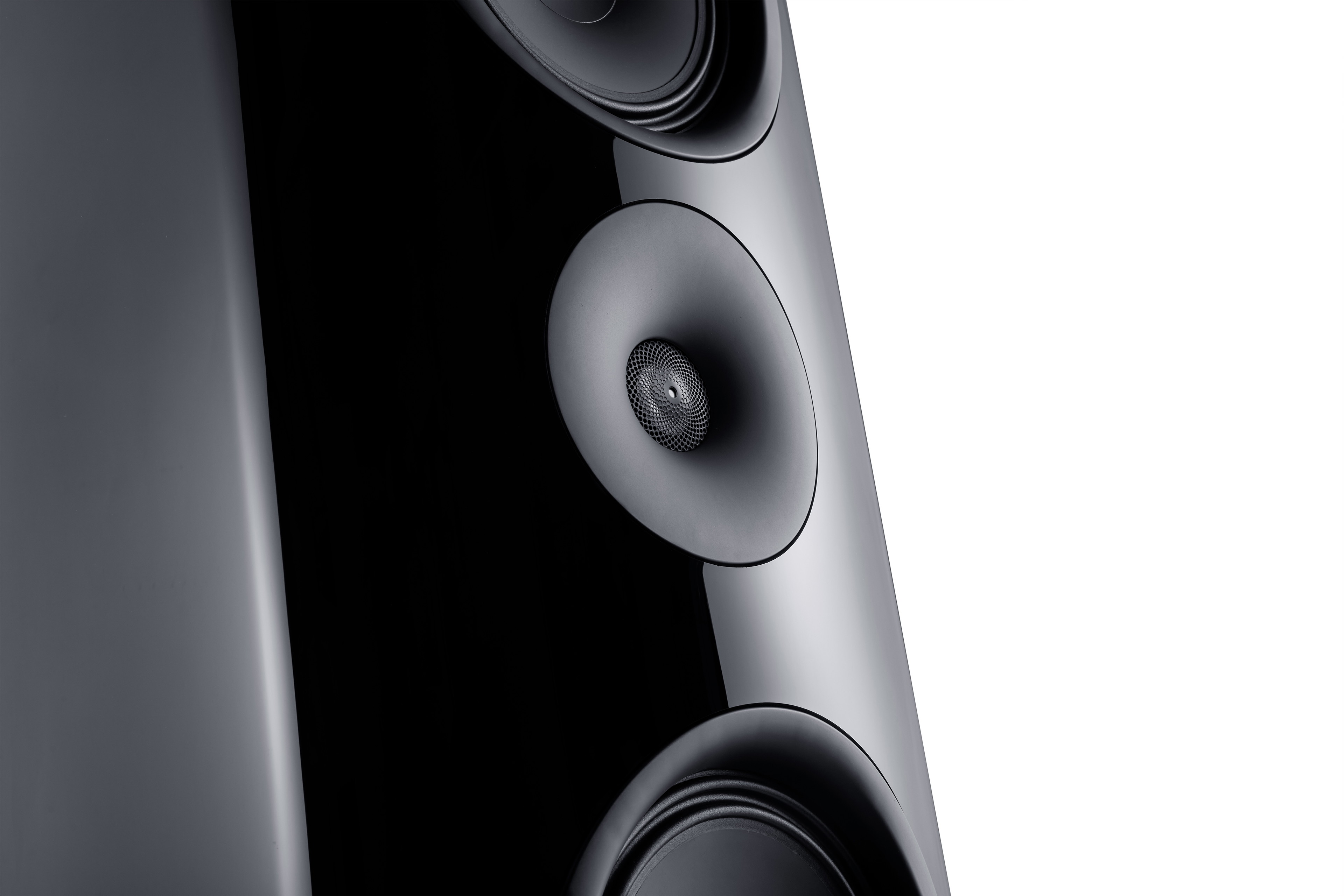

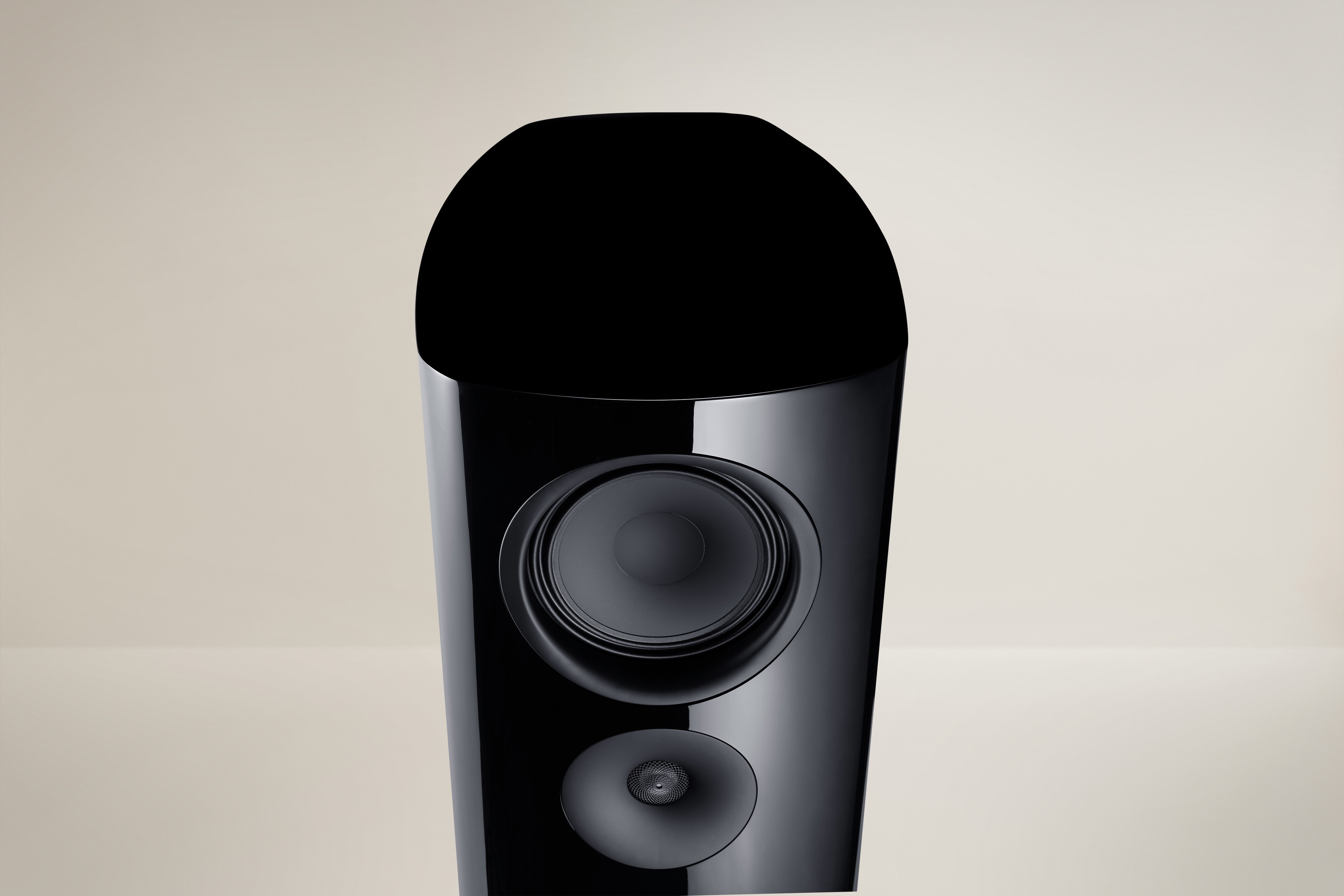

DLC tweeter
The new tweeter system with diamond-coated DLC (Diamond Like Carbon) dome tweeter ensures extremely precise and clear reproduction of high frequencies. The additional integrated, newly developed sound lens acts as a wave guide and mechanical air cushion. It optimizes efficiency and significantly expands the bandwidth of the high frequencies - for an airy, spatial sound stage and finely resolved details that bring music to life.

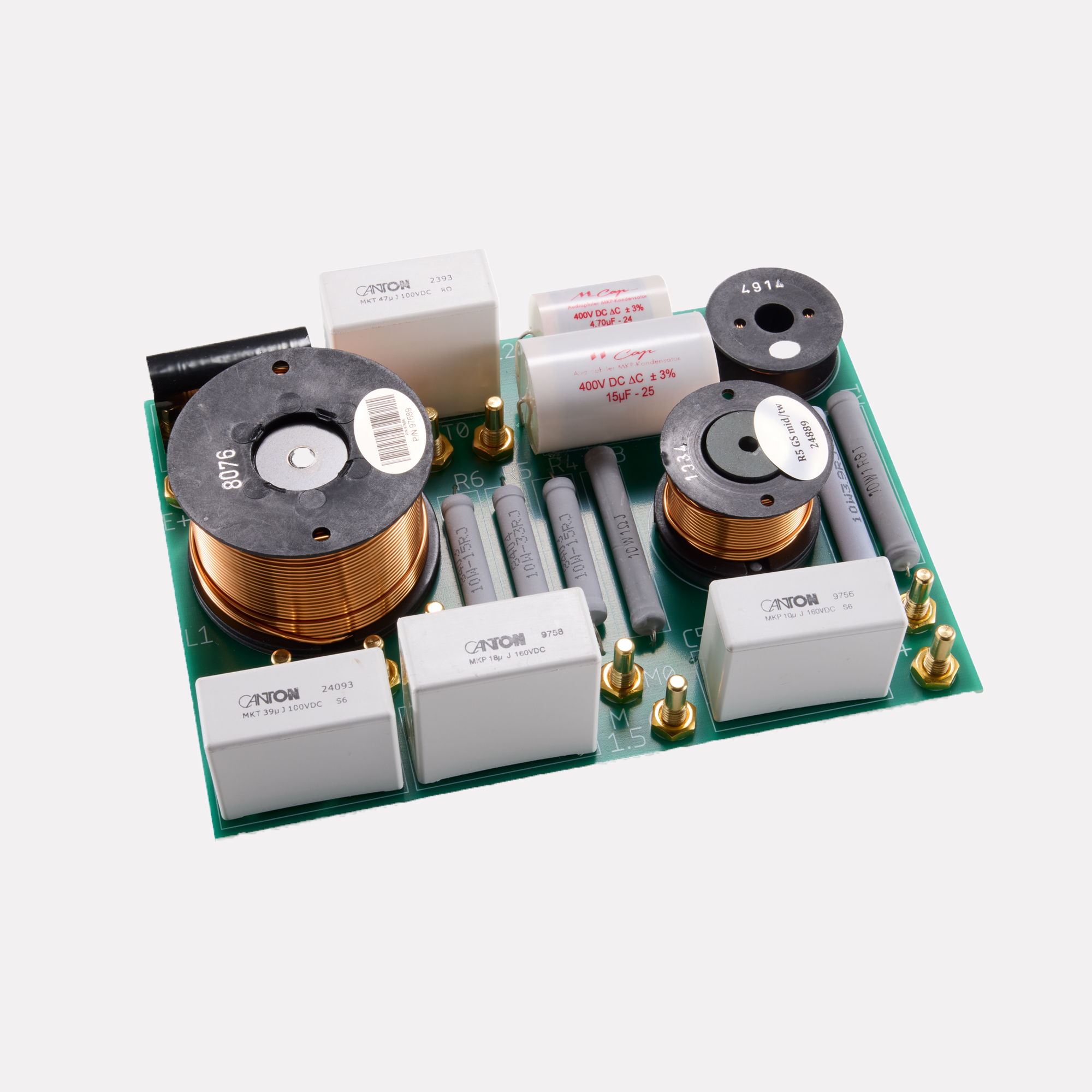

High-end crossover
The crossover used in the Reference 5 GS has been completely redesigned and fitted with high-quality MKP capacitors from Mundorf - one of the world's leading manufacturers of audiophile components. These selected components ensure minimum losses and maximum sound fidelity. The result: a balanced, phase-stable sound image with impressive dynamics, authenticity and fine detail.

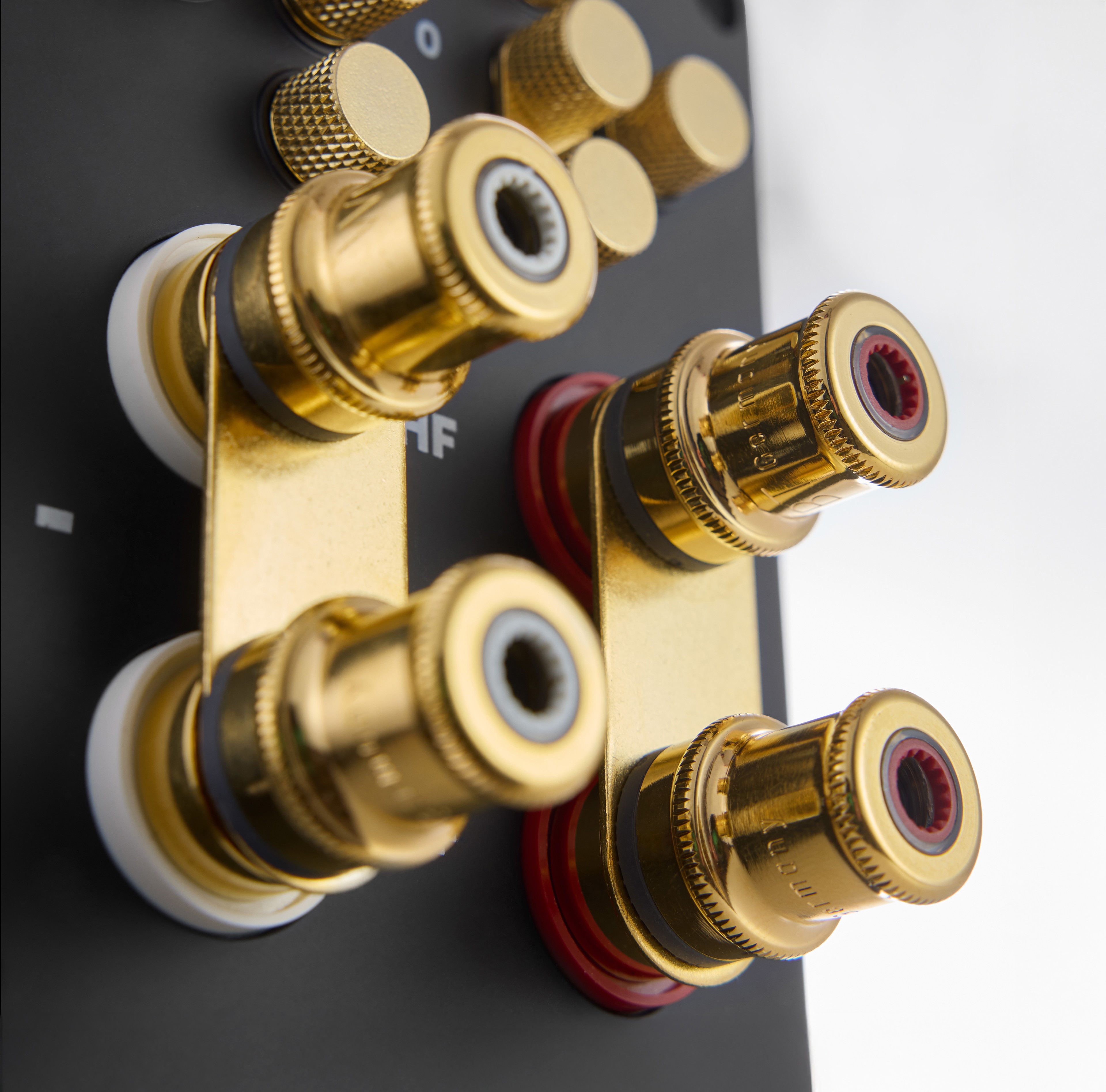

Gold-plated connections
Das neu gestaltete Anschlussterminal der Reference 5 GS ist mit vergoldeten WBT nextgen™-Anschlussklemmen ausgestattet – langlebig, verlustarm und bestens geeignet für Bi-Wiring oder Bi-Amping. Für den klassischen Betrieb sind hochwertige, hartvergoldete Kupferbrücken im Lieferumfang enthalten. Dank integrierter RC-Technologie (Room Compensation) lässt sich der Pegel von Mittel- und Hochtönern in 1,5 dB-Schritten anpassen. So können Sie Ihre Lautsprecher exakt auf Ihre Raumakustik und Ihren Hörgeschmack abstimmen.

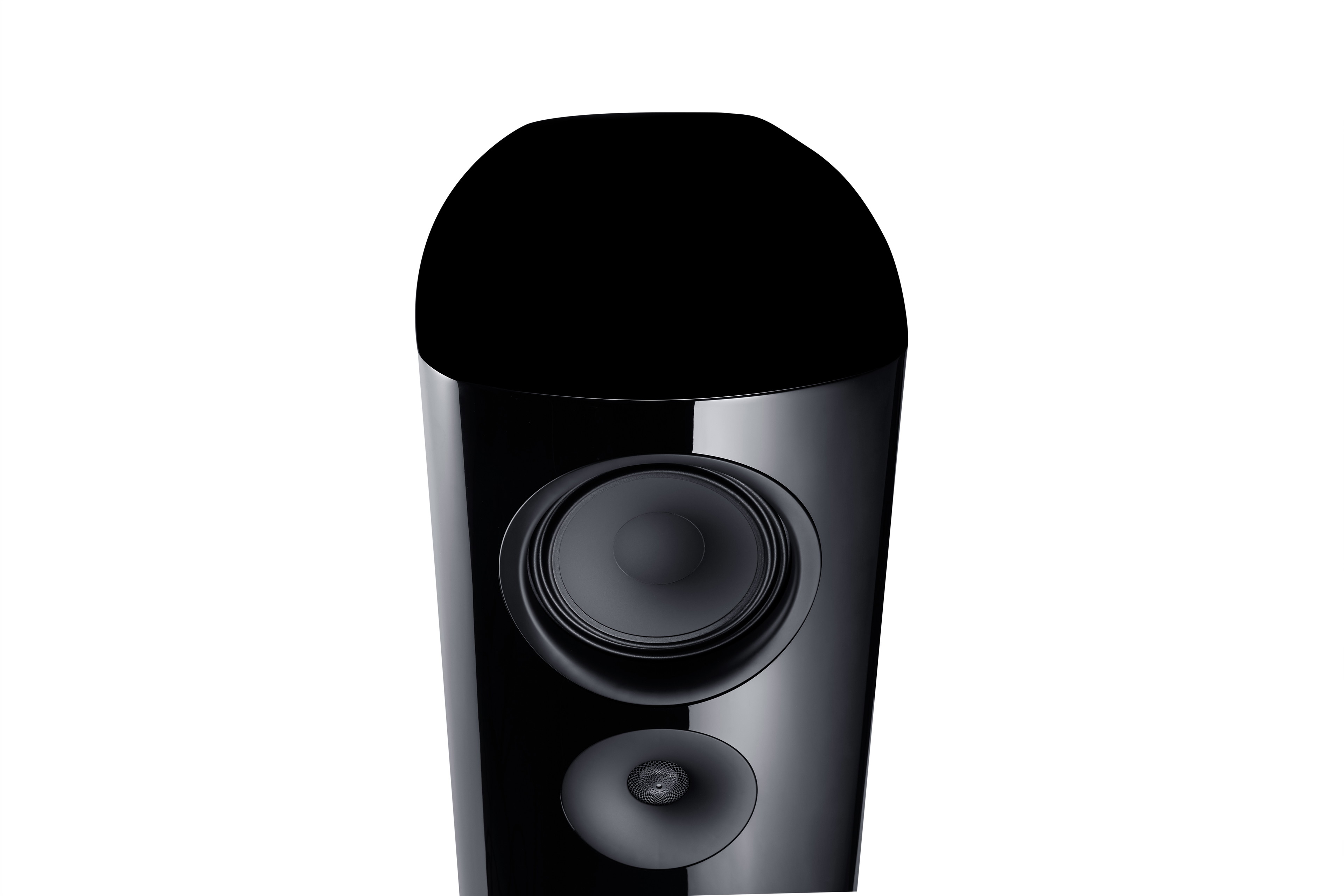

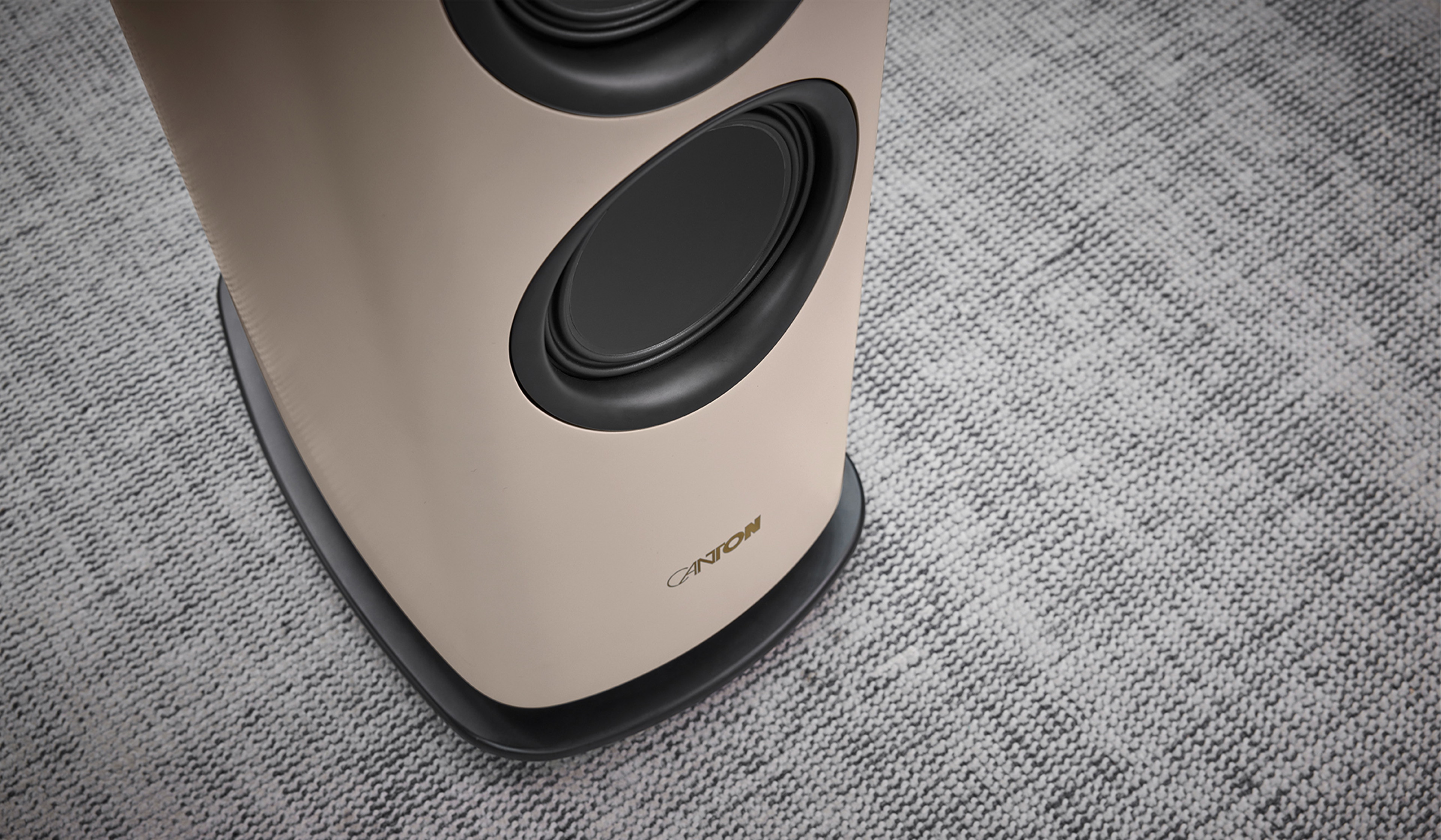

Enclosure shape
The enclosure architecture is based on the latest developments in the Reference series: rounded baffles and elaborately curved sides, bases and lids are manufactured on a precision 5-axis CNC milling machine. This design significantly reduces natural resonances and enables a particularly homogeneous dispersion pattern. Two 174 mm woofers and a midrange driver of the same size with black ceramic tungsten cones (BCT technology) deliver powerful bass and finely resolved mids - perfectly matched to the large cabinet volume and the efficient bass guide system.

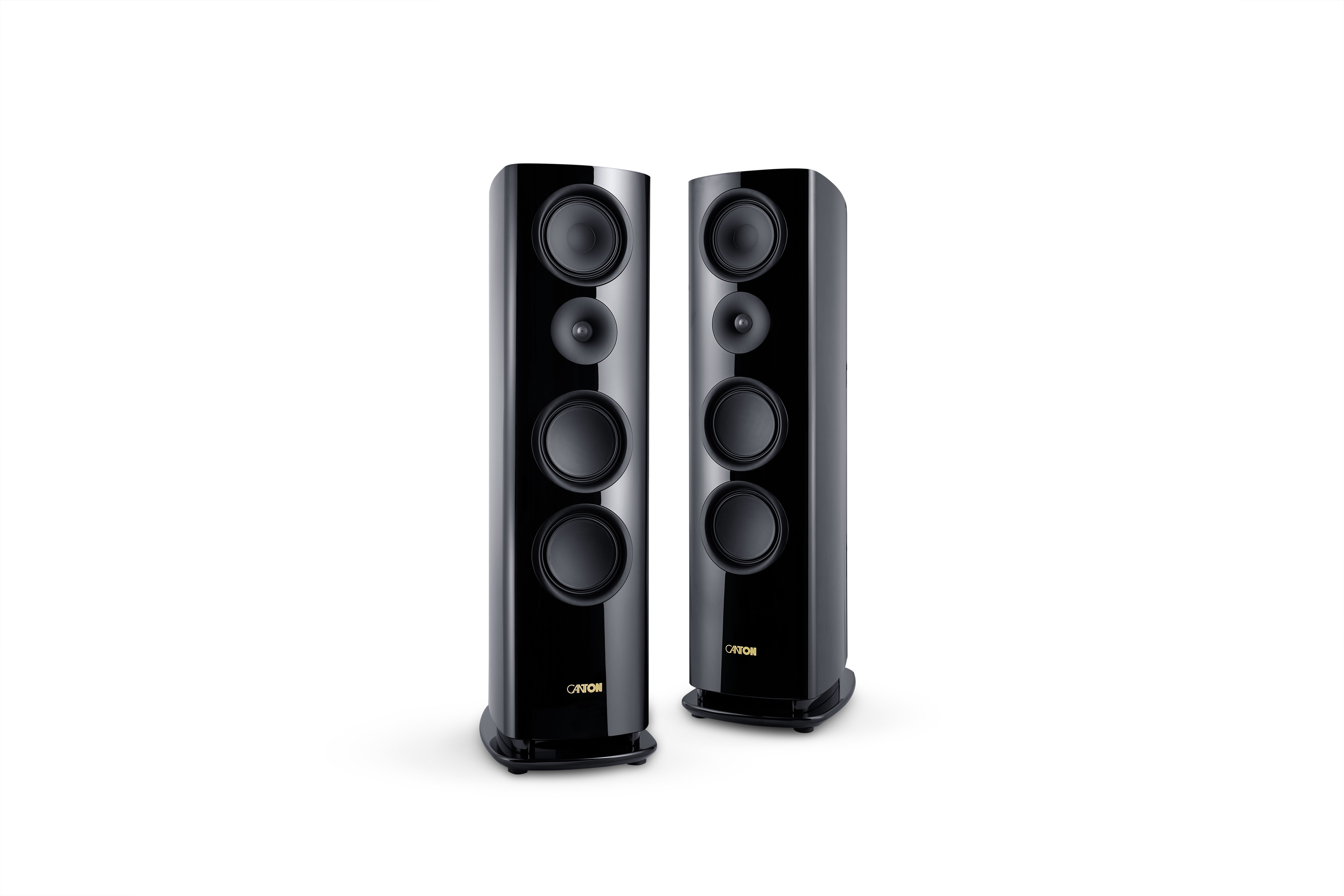

The highlights at a glance
The Reference 5 GS is a statement for the highest sound quality and German engineering. Equipped with a newly developed DLC tweeter, a finely tuned BCT midrange driver and two powerful woofers with bass guide, this floorstanding loudspeaker performs at the very highest level - dynamically, precisely and emotionally. The WBT nextgen™ connection terminal with RC technology enables flexible and individual adjustment, while the elaborately round-milled housing ensures outstanding acoustic properties. Whether you are a music lover, purist or high-end fan: the Reference 5 GS impresses with state-of-the-art technology, uncompromising workmanship and a timeless look.
Made with passion & precision
As a refined special edition of our successful floorstanding speaker, it offers a further enhanced sound experience - powerful, detailed and precise. High-quality components, sophisticated technology and an elegant design make it the ideal choice for music lovers with high standards. With the new “Sand” color variant, it also makes a stylish visual statement - for sophisticated sound quality in a harmonious overall picture.allerhöchstem Niveau – dynamisch, präzise und emotional. Das WBT nextgen™-Anschlussterminal mit RC-Technologie ermöglicht eine flexible und individuelle Anpassung, während das aufwendig rund gefräste Gehäuse für herausragende akustische Eigenschaften sorgt. Ob Musikliebhaber, Purist oder High-End-Fan: Die Reference 5 GS begeistert mit modernster Technik, kompromissloser Verarbeitung und einer zeitlosen Optik – exklusiv auch in der neuen Farbvariante „Sand“.
- 3-way bass reflex system
- Black Ceramic tungsten technology
- 820 watts
- 39 x 133 x 63 cm (W x H x D)
- 3-way bass reflex system
- Black Ceramic tungsten technology
- 630 watts
- 36 x 116 x 53 cm (W x H x D)
- 3-way bass reflex system
- Black Ceramic tungsten technology
- 500 watts
- 325 x 109 x 49 cm (W x H x D)
- 3-way bass reflex system
- Black Ceramic tungsten technology
- 320 watts
- 28 x 99 x 43 cm (W x H x D)
- 2-way bass reflex system
- Black Ceramic tungsten technology
- 220 watts
- 26 x 45 x 39 cm (W x H x D)
- 3-way bass reflex system
- Black Ceramic tungsten technology
- 230 watts
- 70 x 29 x 43 cm (W x H x D)
- Bass reflex with passive diaphragm
- 12" Black Ceramic tungsten technology
- 750 watts
- 48 x 59 x 53 cm (W x H x D)
Dealer search
Experience the Reference Live at one of the following dealers:
1080 P Audiovisuelle Systeme GmbH
1230 Wien
3. Dimension
80339 München
Audio Connoisseur Inh. Lucas Dehnert
42389 Wuppertal
Audio Forum Hifi-Studios GmbH
10709 Berlin
Cosse GmbH
49744 Geeste
Die HIFI-PROFIS HIFI-, TV- und Videogeräte Vertriebs-
64283 Darmstadt
Elektrowelt24 Inh. Achim Weyrauch
50933 Köln
EURONICS XXL Elektro Elsässer GmbH
71065 Sindelfingen
Euronics XXL Johann + Wittmer GmbH
40880 Ratingen
EURONICS XXL Mega Company GmbH
88069 Tettnang
Expert Bening GmbH & Co. KG
27572 Bremerhaven
expert Gröblinghoff GmbH
41468 Neuss
Fernseh-Nemetz Franz-Josef Nemetz e.K. Inh. Christian Kirberg
40210 Düsseldorf
Fidelity Acker + Buck OHG
25462 Rellingen
Heymann TV.Media.Hifi.Electro Inh. Rudolf M. Heymann e. K.
71364 Winnenden
Hifi Concept Robert Heisig
81667 München
HiFi emotion
54552 Schalkenmehren
Hifi Engelskirchen Hr. Engelskirchen
53721 Siegburg
hifi market esser Peter Michael Esser
79098 Freiburg
HIFI REGLER Control Budget Vertriebsservice KG
95213 Münchberg
hifi Schluderbacher GmbH
47877 Willich
HiFi Studio Kemper GbR
89073 Ulm
HiFi-Fabrik e.K.
68789 St.Leon Rot
Hifi-Profis Warenhandelsgesellschaft mbH
60313 Frankfurt/Main
Hirsch und Ille Haushaltsgeräte und Unterhaltungselektronik GmbH
67071 Ludwigshafen
Karl Brumberg GmbH & Co. KG
59174 Kamen
Krejcik GmbH
1080 Wien
kubik&klang Martin Fischer
59590 Geseke
MD Sound Electronic GmbH Martin Dittmeier
97783 Karsbach-Weyersfeld
media@home Moldenhauer Ing. O. Moldenhauer GmbH & Co. KG
45663 Recklinghausen
Profis: Die Hifi-Profis Verwaltungs- u. Handels GmbH
65185 Wiesbaden
Radio Reymer Inh. Fabian Hebel e.K.
50931 Köln
Schlegelmilch highend
97437 Haßfurt
schwarzwaldHiFi Andreas Zwick
78050 Villingen-Schwenningen
Sewa Handels GmbH (c/o expert Arndt)
86609 Donauwörth
SG Akustik & Video GmbH
76139 Karlsruhe
SG Akustik & Video GmbH Villa Schellbach
76530 Baden-Baden
Sound Brothers Home-Cinema-Center Berlin GmbH & Co. KG
10719 Berlin
Sound Brothers Home-Cinema-Center Kassel GmbH
34117 Kassel
Technik Studio Hartmann Inh. René Eike Hartmann
60437 Frankfurt
Triangle HiFi Studio Triangle Trading Enterprise e.K.
12203 Berlin
UNI-HIFI Vertriebsgesellschaft mbH
04103 Leipzig
Reference 5 GS Edition Technical specifications
Reference 5 GS Edition
Item no.: 04620
Shipping:
Pallet
Warranty period:
10 years
weight:
36 kg
Dimensions (WxHxD):
30 x 102 x 46 cm
Acoustic principle:
3-way Bass reflex system
Principle passive resonator:
Bass reflex
Radiation direction resonator:
Downfire
Tweeter quantity:
1
Tweeter size:
25 mm
Tweeter material:
Aluminum ceramic oxyd
Midrange driver quantity:
1
Midrange driver size:
174
mm
Midrange driver material:
Black ceramic tungsten (Wave surround)
Woofer quantity:
2
woofer size:
174
mm
woofer material:
Black ceramic tungsten
Nominal load capacity:
200
watts
Music load capacity:
370
watts
Transmission range:
21...40.000
Hz
Crossover frequencies:
170 / 3.000
Hz
Impedance:
4...8
ohm
Level adjustment
:
yes
Efficiency 2.83V/1m:
88
db
Connections:
WBT-Connector terminal with level adjustment
Woofer Wave surround:
yes
Midrange Wave Bead:
yes
Front cover material:
fabric
Level adjustment tweeter:
yes
Double Cone:
yes
Transmission Front Plate:
yes
DC switch technology:
yes
Bass Guide:
yes
Unit socket included:
yes
Size supplement (WxDxH):
4x4x12 cm
Unit feet:
yes
Height-adjustable unit feet:
yes
Preparation spikes:
yes
Bi-Wiring / Amping Terminal:
yes
Cabinet material:
Multilayer laminate
Terminal contact material:
golden
TCC:
yes
Mounting type front cover:
magnetic
Terminal banana plug suitable:
yes
Room adjustment:
yes
