SUB 12 S2
Active Subwoofer system
€799.00*
per piece
Available, delivery time: 1-2 weeks
- Titanium low tone system
- 12" passive diaphragm
- Fabric cover
- 750 watt music power
Item no.: 04466
Construction and technology

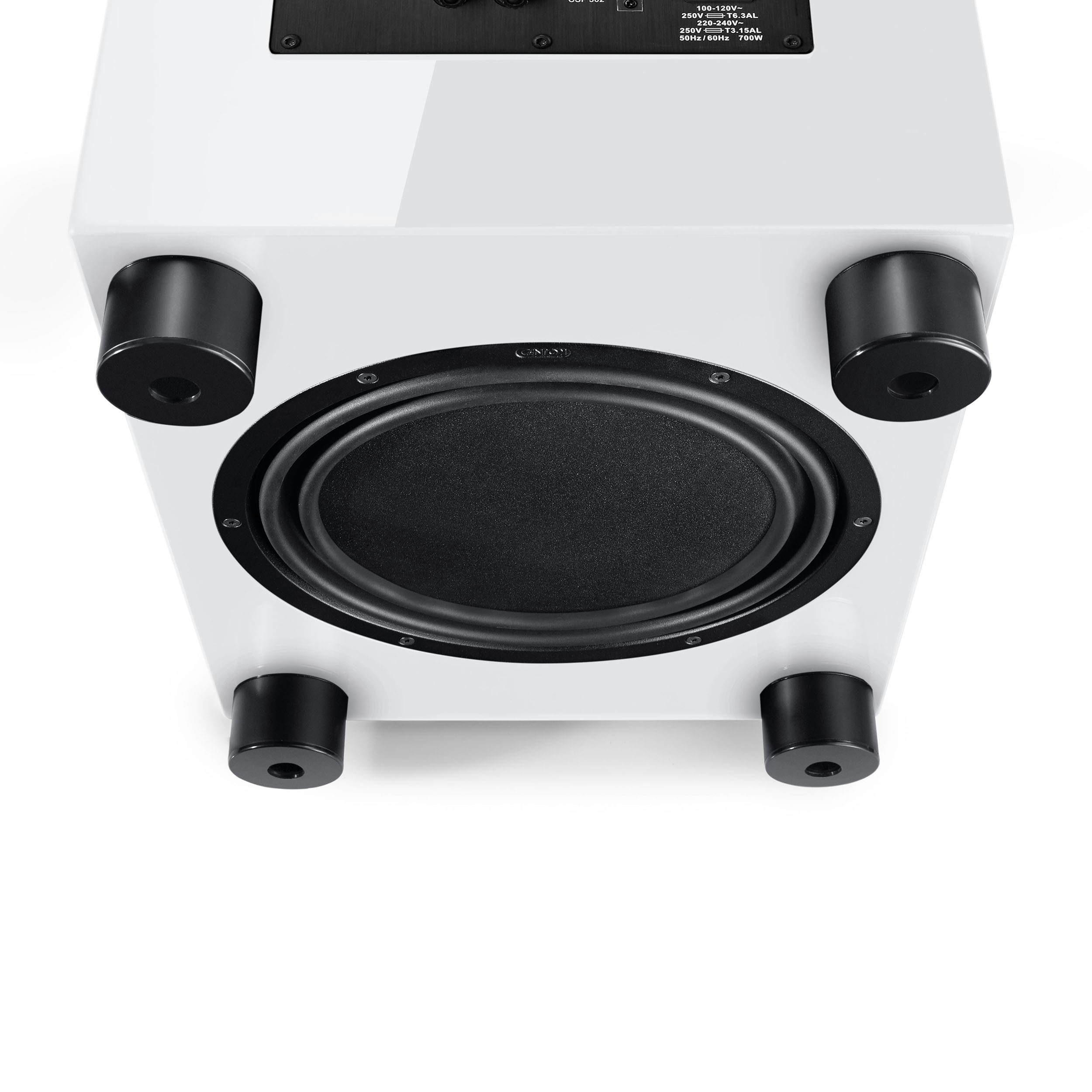

The SUB 12 S2 active subwoofer from Canton works on the bass reflex principle with downfire passive radiator . To guarantee precise mechanical performance, it is equipped with a lushly dimensioned drive including the latest generation wave surround technology. The multiple folded wave surround allows, compared to conventional surrounds, a much longer stroke and reduces sound distortion. Titanium is used as the diaphragm material. Thanks to its integrated Room Compensation technology, you can adjust the subwoofer precisely to your given room acoustics and personal listening habits. The SUB 12 S2 in the classic cube design has a powerful 750 watt power amplifier with high and low level inputs and provides an enormous low frequency foundation despite its living room-friendly dimensions.
SUB 12 S2 Technical specifications
SUB 12 S2
Item no.: 04466
Shipping:
Package
Warranty period:
2 years
Carton contents:
SUB 12 S2; power cable; appliance feet; instruction manual
remote control:
no
Packing dimensions:
57 x 62 x 49,5 cm
Packing weight:
31 kg
Dimensions (WxHxD):
36 x 47,5 x 49,7 cm
Acoustic principle:
bass reflex system with passive radiator
Principle passive resonator:
passive radiator
Radiation direction resonator:
Downfire
Direction of radiation active driver:
Frontfire
Woofer quantity:
1
woofer size:
308
mm
woofer material:
Titanium (wave surround)
Nominal power:
500
watts
Music performance:
750
watts
Transmission range:
18...200
Hz
Crossover frequencies:
55...200 (adjustable)
Hz
Standby power consumption ECO/NSB/AUT/MAN:
0,27
watts
Extended data

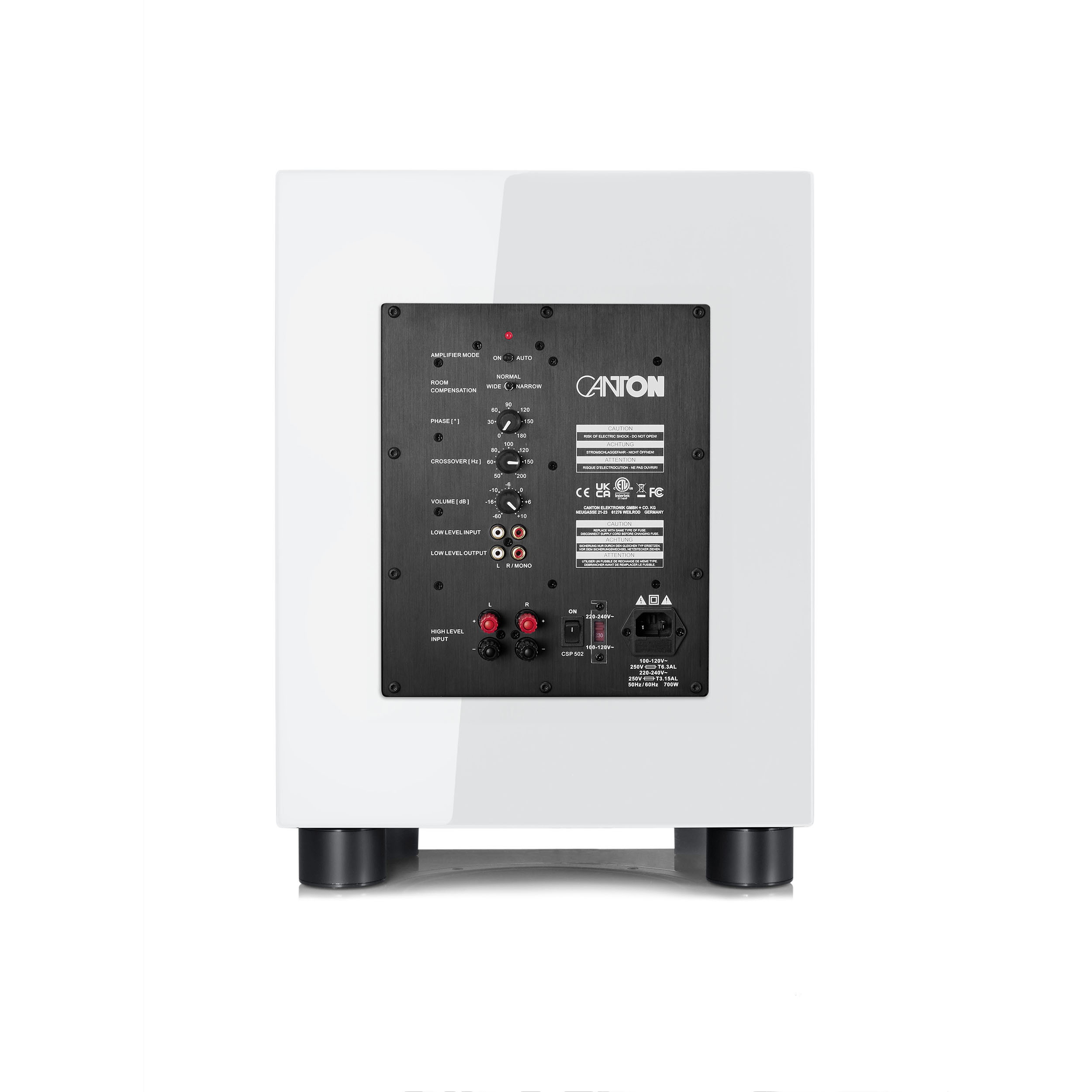

Advanced connection information
High-Level input:
2 high-level inputs (loudspeaker cable)
Low Level input:
2 low-level inputs (chinch)
Low Level output:
yes
Woofer Wave surround:
yes
Double Cone:
no
Bass Guide:
no
Unit socket included:
no
Unit feet:
yes
Height-adjustable unit feet:
no
Preparation spikes:
no
Adjustable volume:
yes
Automatic switch on and off:
yes
Adjustable crossover frequency:
ja
Room adjustment:
yes
Signal processing:
Digital
Extended special features
Preparation absorber:
yes
Front cover material:
full-size magnetic cover
Mounting type front cover:
Plug-in front cover
Loudspeaker terminals Banana plugs suitable:
yes
Preparation for wall mounting:
no
